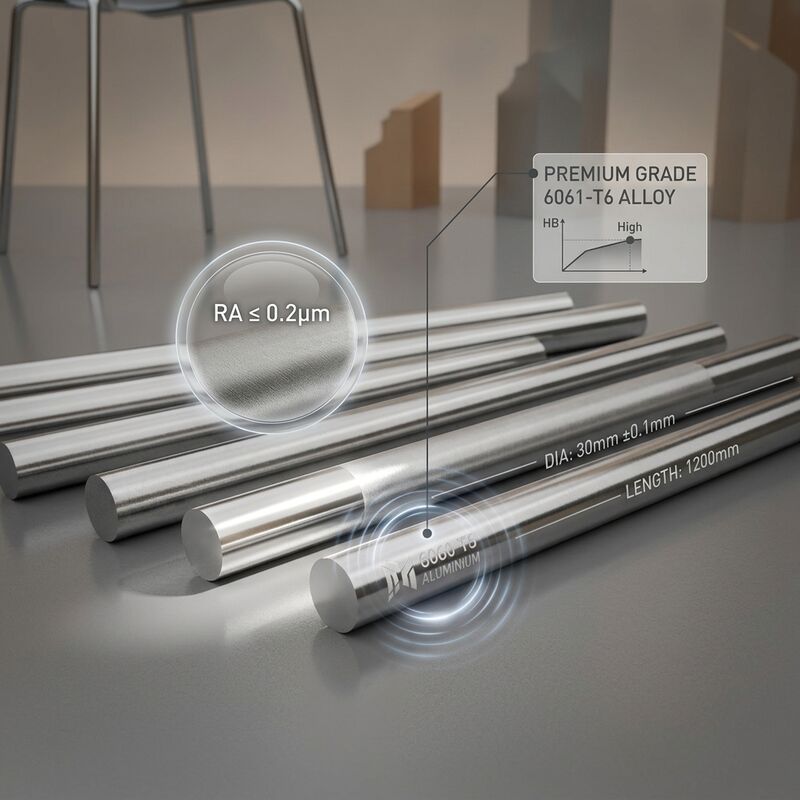

Large Diameter Forged 6061 Aluminum Round Bar Heavy Duty CNC Machining Rod

Large Diameter Forged 6061 aluminum round bar is a high strength structural product manufactured by forging rather than simple extrusion. The forging process refines the grain structure and eliminates internal porosity, producing a dense, homogeneous material that resists deformation under heavy machining loads. With diameters from 250 mm up to 500 mm, this forged round bar is suited to large structural components, heavy duty tooling, and precision parts that require consistent mechanical properties throughout the section.

The 6061 alloy is heat treated to the T6 condition, which raises its tensile strength to at least 290 MPa while preserving good machinability and corrosion resistance. Forged round bar machines cleanly on large CNC centers, holds tight tolerance during turning and milling, and accepts anodizing or protective coatings for demanding environments. When a project calls for a large, strong, and dimensionally reliable aluminum blank, forged 6061 round bar provides the structural integrity that extruded stock cannot match.

• Forged Grain Structure: Forging refines the grain and removes porosity for high internal integrity.
• Large Diameter Range: Available from 250 mm up to 500 mm for heavy structural blanks.
• T6 Heat Treatment: Tensile strength of at least 290 MPa for load bearing structural parts.
• Heavy Duty Machinability: Machines cleanly on large CNC centers with stable dimensional results.
• Good Corrosion Resistance: Reliable performance in industrial and outdoor environments.
• Ultrasonic Testing Available: Internal quality verified by ultrasonic inspection on request.

Large diameter forged 6061 round aluminum bar is used for heavy duty machine components, large mold bases, hydraulic cylinder blanks, structural rings, pressure equipment flanges, and precision tooling. It is also chosen for transport and energy equipment that needs strong, lightweight, and dimensionally stable aluminum parts.

Large billets are heated and forged under pressure to refine the internal grain structure, then the material is solution treated and artificially aged to the T6 condition. This sequence delivers uniform mechanical properties across the full section, so the bar performs predictably even after extensive machining.

Forged bars are protected with film and packed in heavy duty export wooden cases with steel strapping. Each shipment includes a mill test certificate, and ultrasonic testing and third party inspection can be provided to verify internal soundness for critical components.
