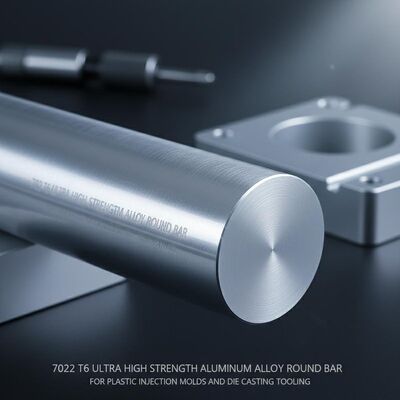

7022 T6 Ultra High Strength Aluminum Alloy Round Bar for Plastic Injection Molds and Die Casting Tooling
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | WNRLN |
| Certification: | ISO 9001:2015 |
| Model Number: | 7022-T6-MTB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 kg |
|---|---|
| Price: | USD 3.2-5.8 / kg |
| Packaging Details: | Export-grade PVC wrapping with wooden pallet, moisture-proof packaging, seaworthy shipping protection |
| Delivery Time: | 5 working days for stock, 15-25 days for production |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 200 Metric Tons per Month |
|
Detail Information |
|||
| Alloy: | 7022 | Temper: | T6 |
|---|---|---|---|
| Diameter Range: | 10mm - 200mm | Tensile Strength: | ≥470 MPa |
| Yield Strength: | ≥400 MPa | Hardness: | ≥140 HB |
| Shape: | Round Bar | ||
| Highlight: | 7022 T6 High Strength Round Bar,Mold Tooling Aluminum Stock,Ultra Strong Forging Grade Alloy |
||
Product Description
7022 T6 Ultra High Strength Aluminum Alloy Round Bar Molds Plastic Injection Die Casting Tooling Stock Ø10-200mm
7022 T6 Ultra High Strength Aluminum Alloy Round Bar for Molds and Tooling
7022-T6 aluminum alloy round bar is a premium high-strength alloy developed for mold and tooling applications where maximum mechanical properties are required. With zinc and magnesium additions, it delivers exceptional strength suitable for plastic injection molds, die casting tooling, and high-load structural components.
Key Features
- Tensile strength: ≥470 MPa
- Superior to 7075 in certain tooling applications
- Excellent polishability for mold surfaces
- Good thermal conductivity for molding applications
- Precision machined dimensional tolerance
Technical Specifications
| Alloy | 7022 (Al-Zn-Mg-Cu) |
|---|---|
| Temper | T6 |
| Diameter Range | 10mm - 200mm |
| Yield Strength | ≥400 MPa |
| Hardness | ≥140 HB |
| Elongation | ≥8% |
Applications
- Plastic injection molds
- Blow molds
- Die casting dies
- Jigs and fixtures
- Tooling plates
- Prototype mold inserts
- Structural machine parts
