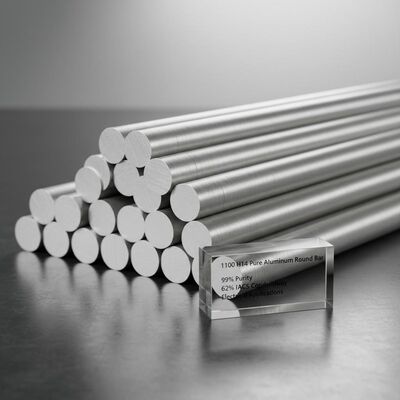

1100 H14 Pure Aluminum Round Bar with 99% Purity and 62% IACS Conductivity for Electrical Applications
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | WNRLN |
| Certification: | ISO 9001:2015 |
| Model Number: | 1100-H14-ER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 kg |
|---|---|
| Price: | USD 3.2-5.8 / kg |
| Packaging Details: | Export-grade PVC wrapping with wooden pallet, moisture-proof packaging, seaworthy shipping protection |
| Delivery Time: | 5 working days for stock, 15-25 days for production |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 200 Metric Tons per Month |
|
Detail Information |
|||
| Alloy: | 1100 | Temper: | H14 |
|---|---|---|---|
| Diameter Range: | 3mm - 200mm | Purity: | Al ≥99.0% |
| Conductivity: | 62% IACS | Thermal Conductivity: | 218 W/m·K |
| Shape: | Round Bar | ||
| Highlight: | 1100 H14 Pure Aluminum Round Bar,Electrical Grade Aluminum Stock,High Conductivity Alloy Round Bar |
||
Product Description
1100 H14 Pure Aluminum Round Bar Electrical Grade High Conductivity Busbars Connectors 99 Percent Pure Ø3-200mm
1100 H14 Pure Aluminum Round Bar for Electrical Applications
1100-H14 commercially pure aluminum round bar (99.0% minimum aluminum content) offers the highest electrical conductivity among aluminum alloys at approximately 62% IACS. It is the preferred material for electrical busbars, power distribution components, and heat exchanger tubes requiring maximum conductivity.
Key Features
- Electrical conductivity: 62% IACS
- 99.0% minimum aluminum purity
- Excellent corrosion resistance
- Superior formability for bending and forming
- Good thermal conductivity: 218 W/m·K
Technical Specifications
| Alloy | 1100 (Al ≥99.0%) |
| Temper | H14 |
| Diameter Range | 3mm - 200mm |
| Tensile Strength | 110-145 MPa |
| Elongation | ≥12% |
| Conductivity | 62% IACS |
Applications
- Electrical busbars
- Power connectors
- Heat exchanger components
- Chemical processing equipment
- Food industry machinery
- Signage
